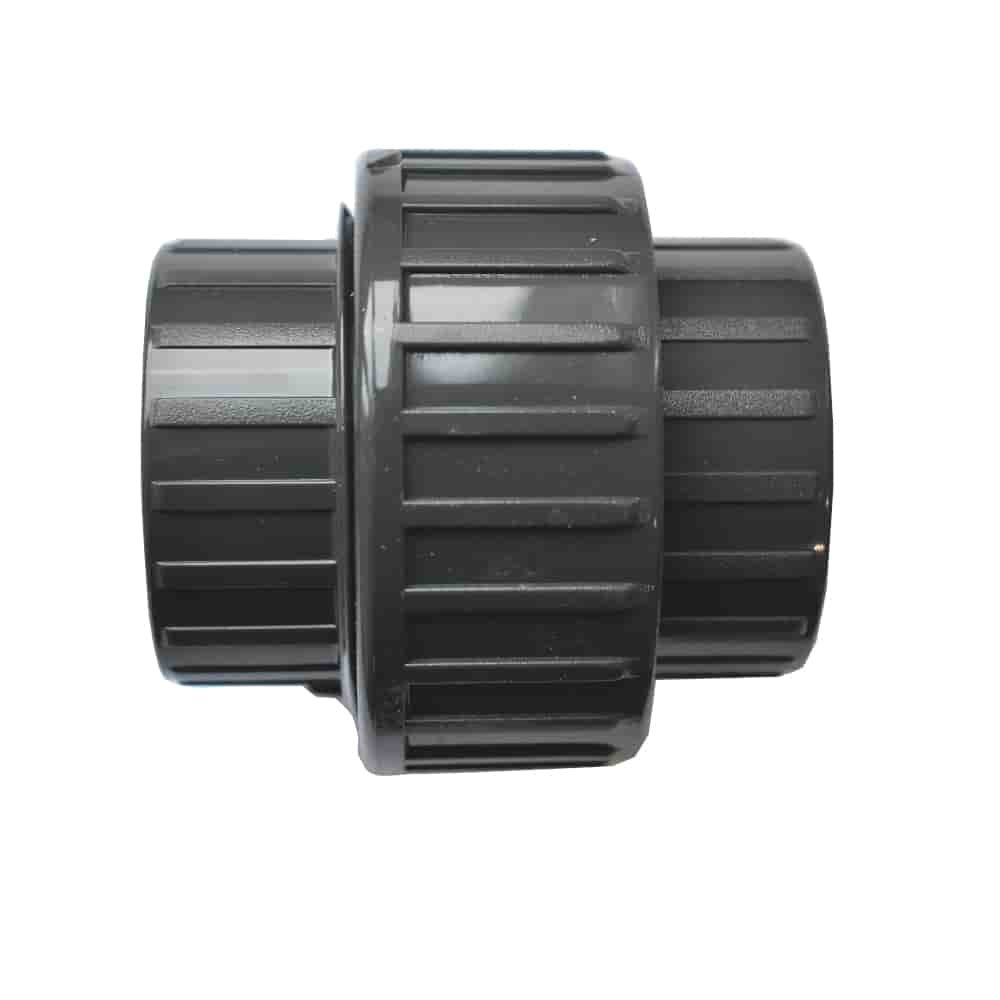

PVC-U Threaded Fitting Solvent Socket x FI 63 mm x 2"

PVC-U Threaded Fitting Solvent Socket x FI 63 mm x 2"

By solvent cementing the fittings to PVC pipe, shut-off valves, flow meters or sight glasses, a professional piping system can be created with minimal effort.
The combination of fittings and pipe sections is used in pool, pond and swimming pool construction, industrial and plant engineering, agriculture, water conveyance, garden irrigation and sprinkler systems.
Likewise, many koi systems and aquarium systems are built with this connection in private applications.

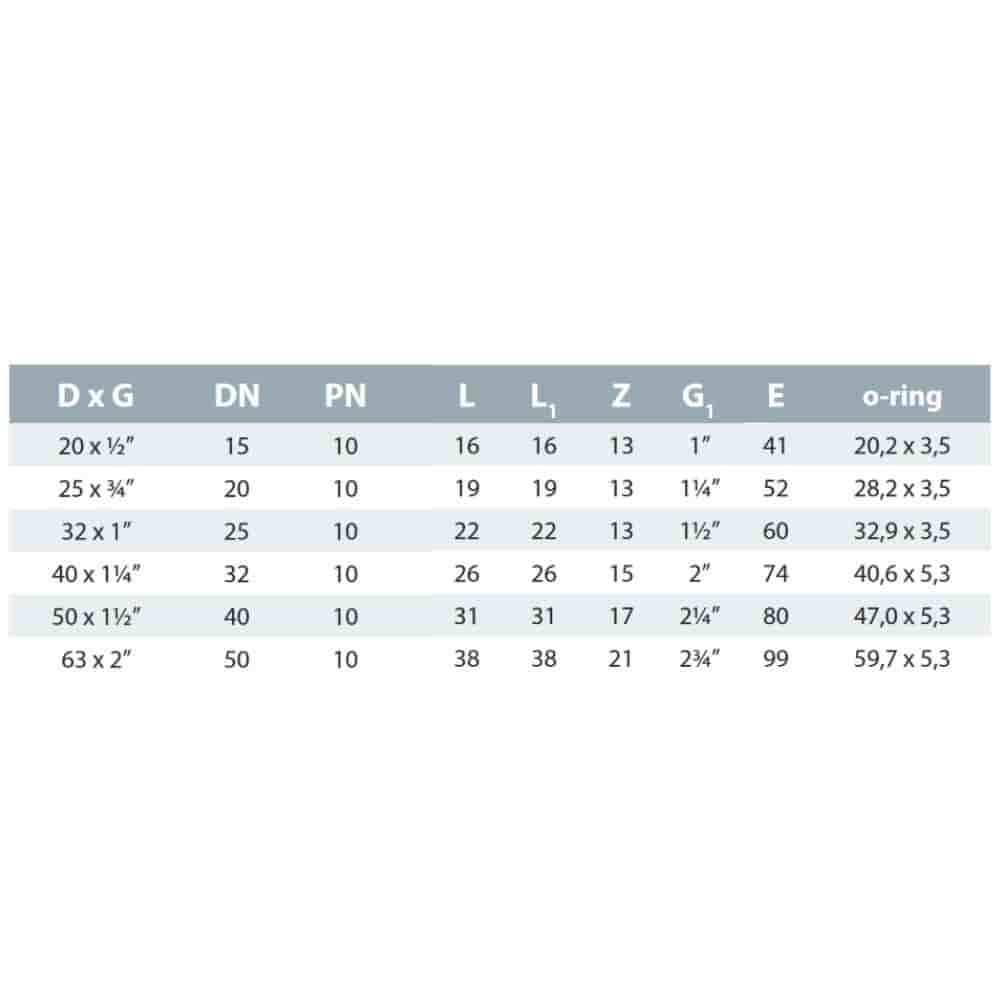

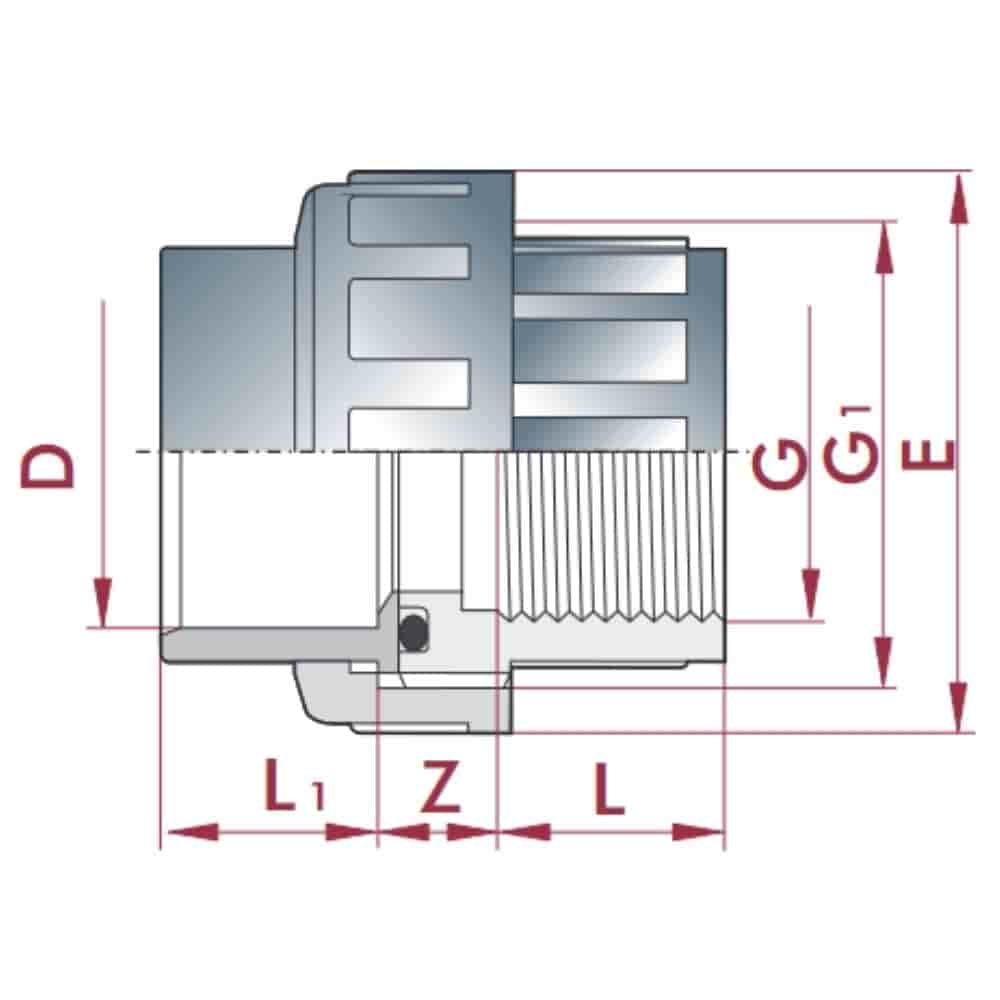

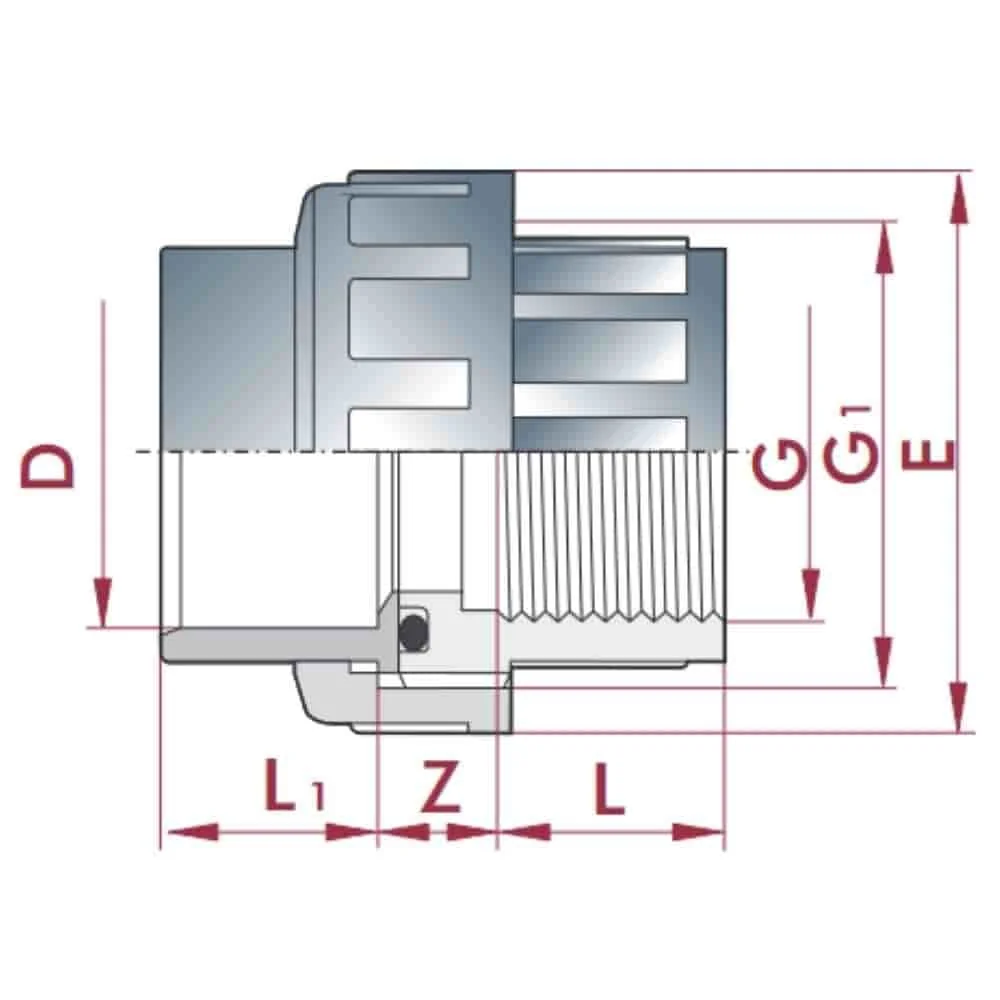

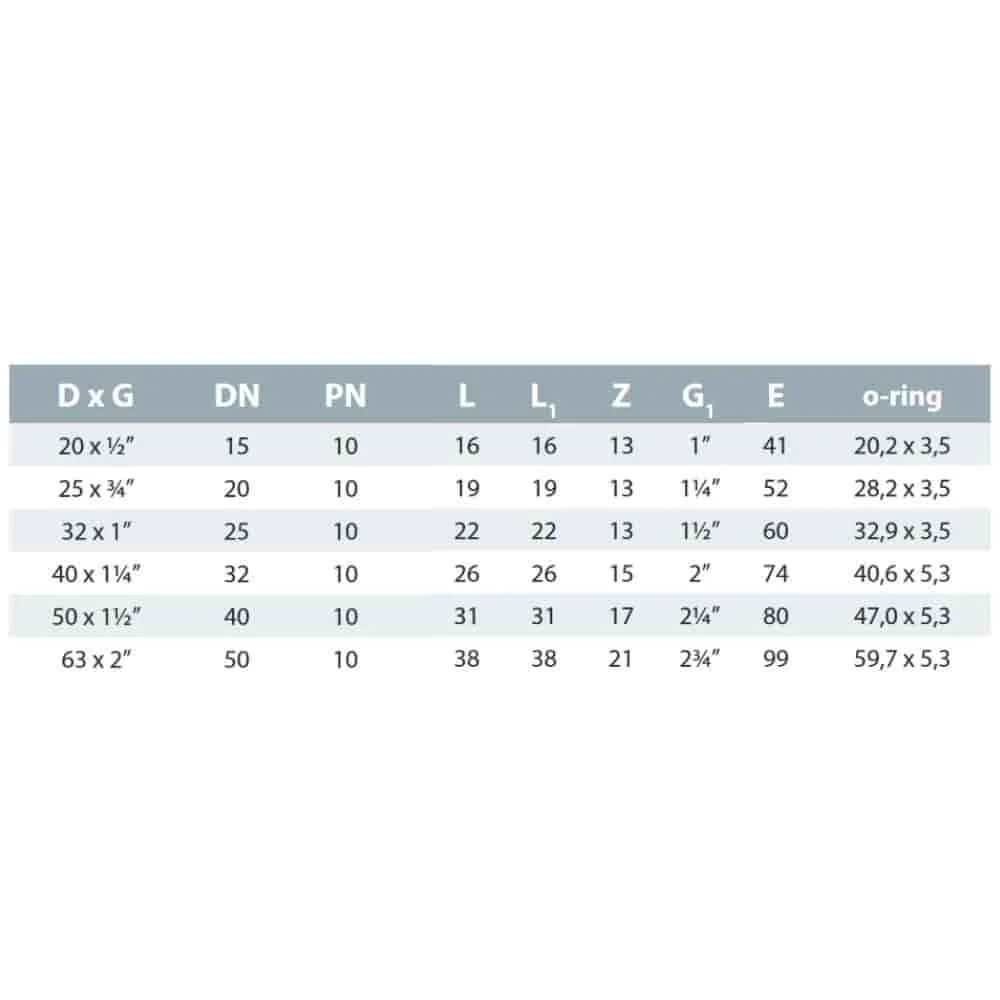

Technical Data (see image)


D x G: 63 x 2"
DN: 50
PN: 10 (150 psi)
L: 38mm
L1: 38mm
Z: 21mm
G1: 2 3/4"
E: 99mm
o-ring: 59,7 x 5,3


PVC Fittings Advantages:


• low weight
• easy processing, as the parts can be solvent cemented together (solvent welding)
• wear-resistant and smooth material
• resistant to a wide variety of chemicals
• extremely durable
• no corrosion
• perfect sealing under severe conditions


Technical Data:


• Threaded fitting solvent socket x FI 63mm x 2"
• Rigid PVC / PVC-U / Polyvinyl Chloride
• Manufactured according to ISO 9001 certification


Material and Processing:


The high-quality PVC fittings are made from PVC-U, this rigid PVC material is particularly durable and has good chemical resistance.
Since the fittings are coated with a grease film after production, it is important to clean the fittings with a cleaner before solvent welding and to remove the grease film.
Cleaning the fittings is the basis for bonding together, because if the fittings are not properly cleaned, the adhesive cannot fully adhere to the surface.
Initially, you should use more adhesive, as too little adhesive will only become apparent after completion through leakage.


Building with PVC Fittings:


The advantages lie in the installation of PVC fittings, as the elements are solvent cemented together and this significantly reduces installation time.
The bonding creates a durable and robust connection that is very long-lasting.
The fittings are quickly assembled and easy to handle, for which the choice of the right adhesive is very important. Cepex adhesive and cleaner are ideal for this, as they are durable and easy to process.


PVC solvent cement fittings – use and assembly.
With these fittings, piping systems and pipes with low water temperatures and low water pressures can be realized. Therefore, the fittings are ideal for filter systems in pond construction and aquatics.


Further Applications for PVC Fittings:


• Swimming pools
• Whirlpools
• Pond construction
• Terrariums
• Aquariums
• Koi pond
• Tanks
• Plant engineering
