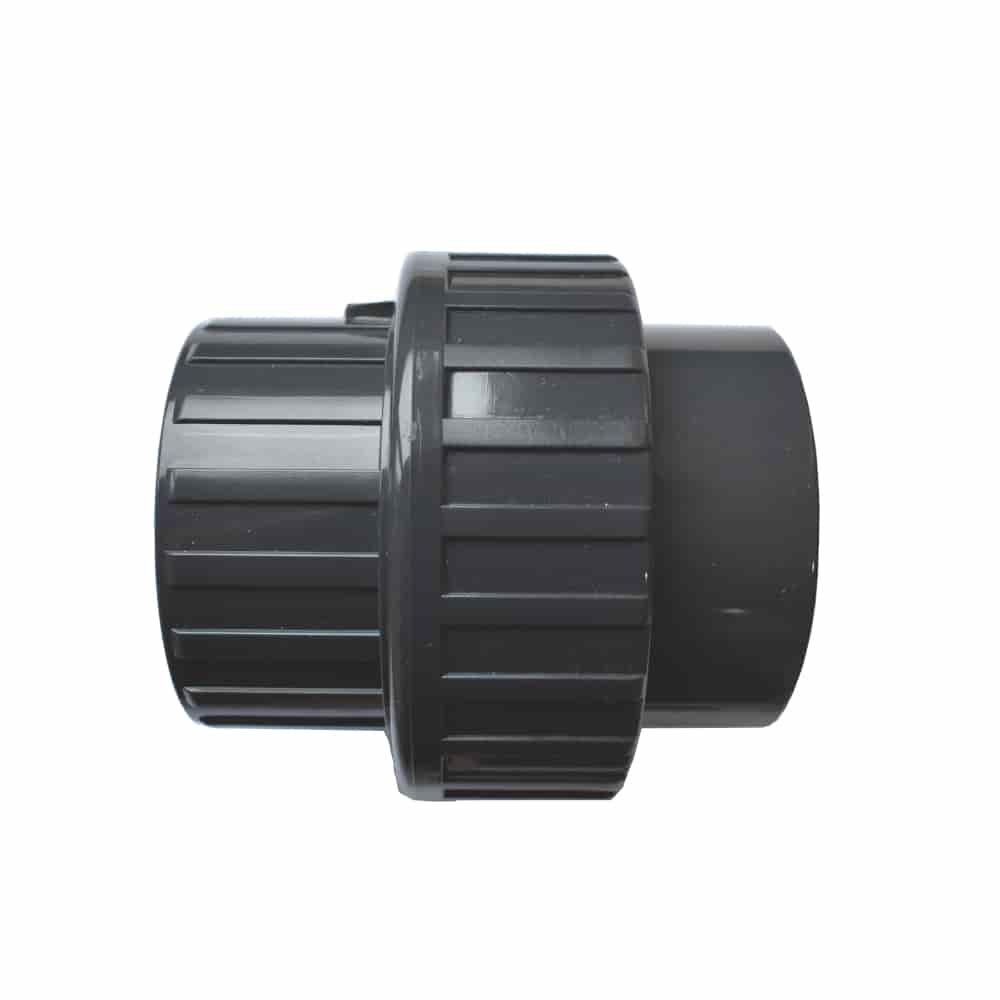

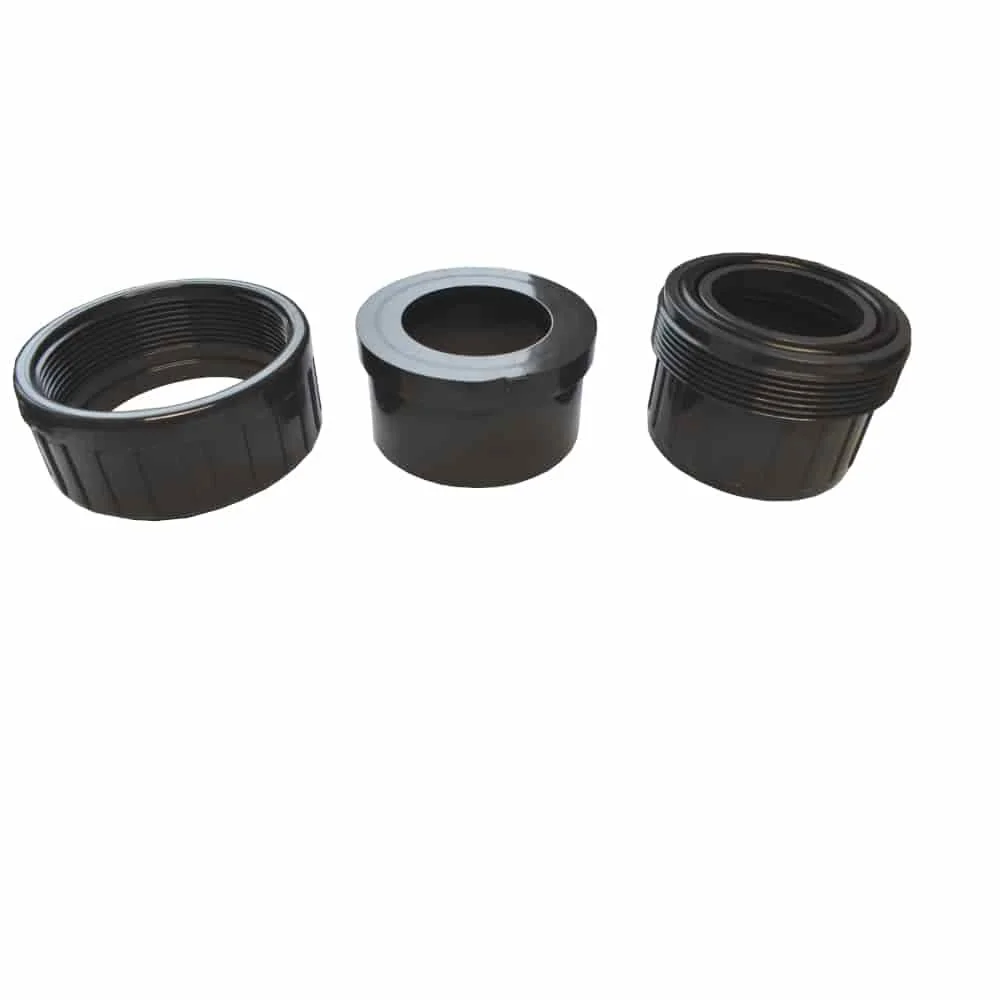

PVC-U Threaded Coupling Solvent Socket x Solvent Socket 63 mm

PVC-U Threaded Coupling Solvent Socket x Solvent Socket 63 mm


By solvent cementing the fittings to the PVC pipe, shut-off valves, flow meters or sight glasses, a professional pipe system can be created with minimal effort.
The combination of fittings and pipe sections is used in pool, pond and swimming pool construction, industrial and plant engineering, agriculture, water conveyance, garden irrigation and sprinkler systems.
Likewise, many koi systems and aquarium systems are built with this connection in private applications.

For reductions, the inner diameter is specified on one side and the outer diameter on the other.
Example of a "short reduction 50mm x 40mm":
The reduction has an outer diameter of 50mm and an inner diameter of 40mm and is 31mm short overall.

Example of a "long tapered reduction 50-40mm x 25mm":
The reduction has an outer diameter of 50mm and an inner diameter of 40mm on the "left" side and an inner diameter of 25mm on the "right" side.


PVC Fittings Advantages:


• low weight
• easy processing, as the parts can be solvent cemented together (solvent welding)
• abrasion-resistant and smooth material
• resistant to a wide variety of chemicals
• extremely durable
• no corrosion
• perfect sealing under severe conditions


Technical Data:


• Rigid PVC / PVC-U / Polyvinyl Chloride
• PN 10 / 10bar at 20°
• PN 16 / 16bar at 20°
• Manufactured according to ISO 9001 certification


1 Meter PVC 16bar with Both Ends in Smooth Design


The high-quality pipes, in combination with our PVC solvent cement fittings and PVC adhesive, create a strong connection that is also used in industrial applications.
Particularly due to the high pressure rating of PN 16, our pressure pipes stand out significantly in quality compared to other PVC pipes.
Another positive property is the excellent resistance to oils, fats, alcohols, gasoline, acids, common wastewater and alkalis.

Use in any known soil type also has no adverse effects. PVC-U pipe can be easily connected and cemented with any PVC-U fitting from reputable manufacturers.


Technical Data:


• Material: PVC-U
• Pressure Rating: PN16
• Both Ends: smooth
• Chemical Resistance: salt, chlorine, alkali and acid-containing liquids
• DIN 8061/8062
• ISO 1452-2
• Length: 1m each
• Color: grey


PVC Pipe System Advantages:


• low weight
• easy processing, as the parts can be solvent cemented together (solvent welding)
• abrasion-resistant and smooth material
• extremely durable
• no corrosion
• perfect sealing under severe conditions


Material and Processing:


The high-quality PVC fittings are manufactured from PVC-U, this rigid PVC material is particularly durable and has good chemical resistance.
Since the fittings are coated with a grease film after production, it is important to clean the fittings with a cleaner before solvent welding and remove the grease film.
Cleaning the fittings is the basis for cementing them together, because if the fittings are not properly cleaned, the adhesive cannot fully adhere to the surface.
Initially, you should use more adhesive, as too little adhesive will only become apparent after completion through leakage.


Building with PVC Fittings:


The advantages lie in the installation of the PVC fittings, as the elements are cemented together and this significantly reduces installation time.
The cementing provides a long-lasting and robust connection that is very durable.
The fittings are quickly installed and easy to handle, for which the choice of the right adhesive is very important. Cepex adhesive and cleaner are ideal for this, as they are durable and easy to process.


PVC Solvent Cement Fittings – Use and Installation.
With these fittings, piping systems and pipes with low water temperatures and low water pressures can be realized. Therefore, the fittings are ideal for filter systems in pond construction and aquaristics.


Further Applications for PVC Fittings:


• Swimming pools
• Whirlpools
• Pond construction
• Terrariums
• Aquariums
• Koi pond
• Tanks
• Plant engineering
