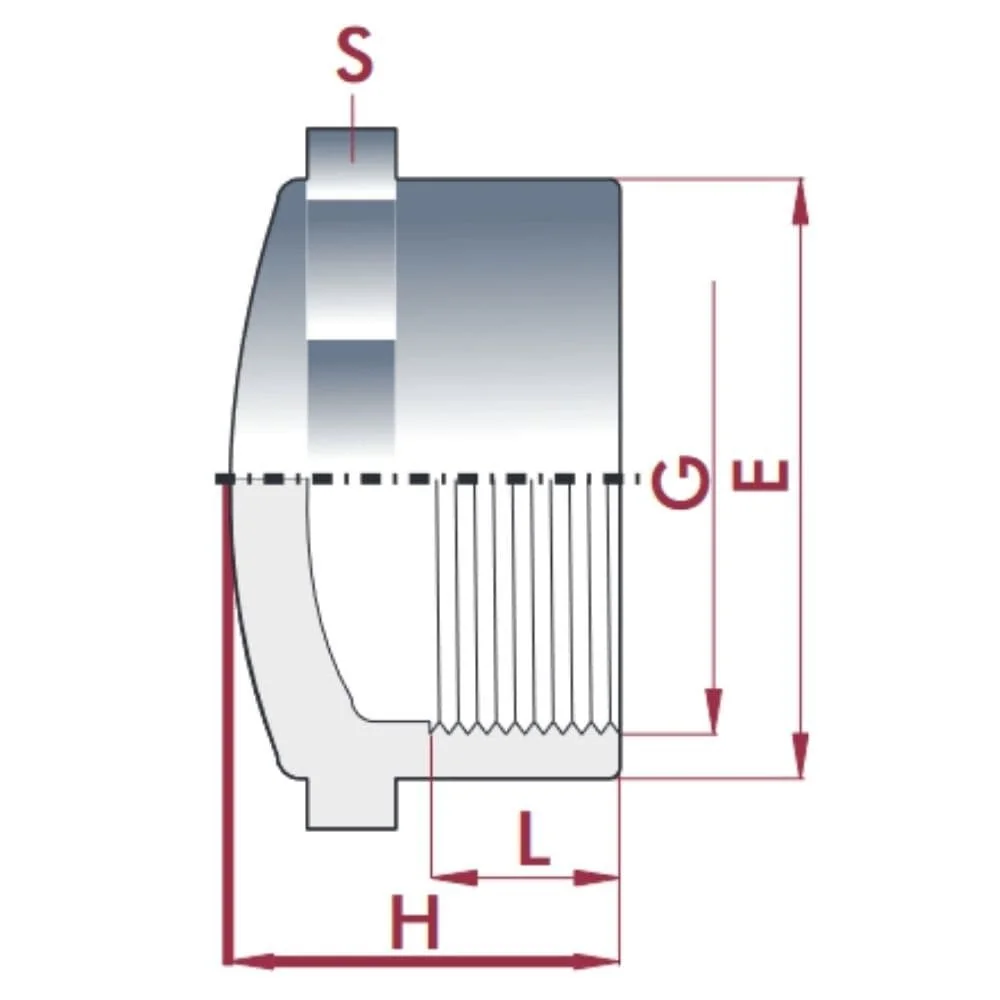

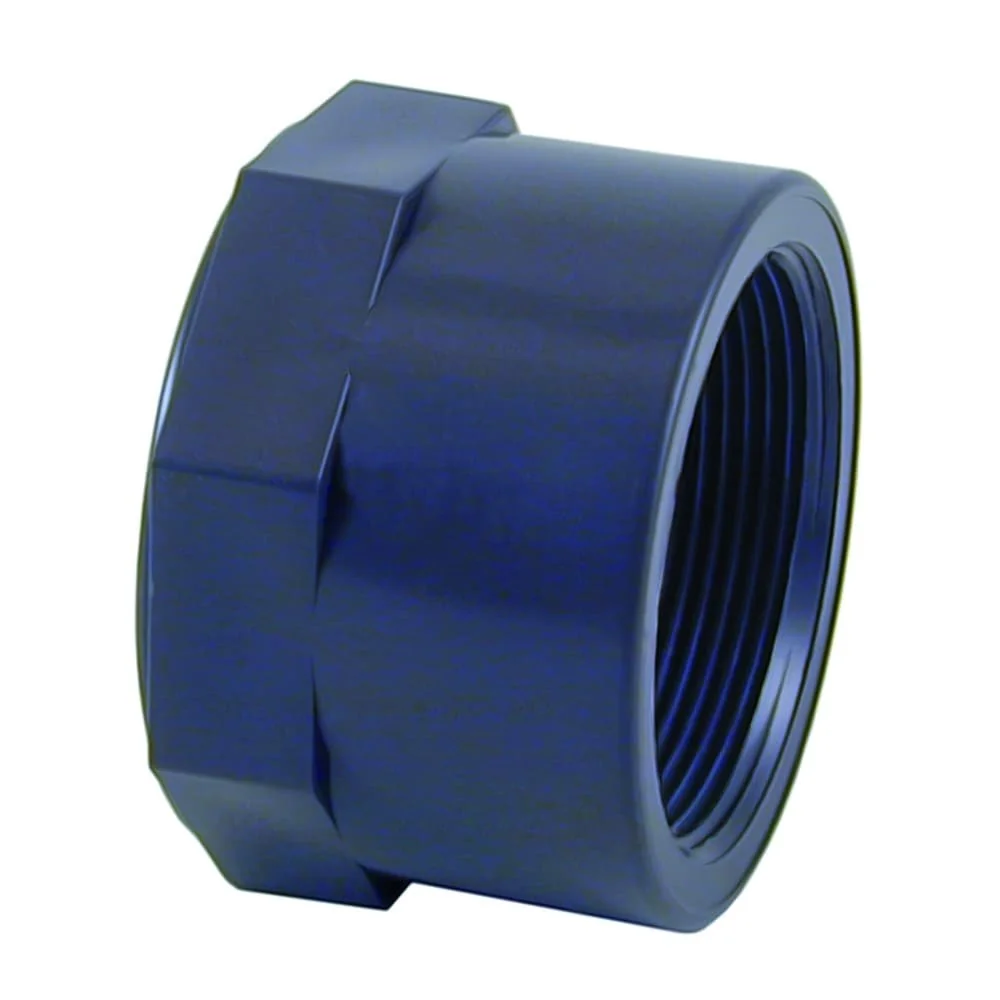

Caipín PVC-U le snáithe inmheánach 1 1/2" PN10

PVC Fittings + Unions in various sizes + shapes


NOTE: The design "Glue Sleeve x Hose Sleeve 32 mm" has changed to "Glue Sleeve OD 32mm x Hose Sleeve 30 mm", please take this into account before your purchase.

By gluing the fittings with the PVC pipe, shut-off valves, flow meters, or sight glasses, a professional pipeline system can be created with little effort.
The combination of fittings and pipe pieces is used in the areas of pool, pond, and swimming pool construction, industrial and plant construction, agriculture, water extraction, garden irrigation, and sprinkler systems.
Similarly, many koi systems and aquarium systems are built with this connection in private applications.

For reductions, both the inner and outer diameters are specified.
Example of a "short reduction 50mm x 40mm":
The reduction has an outer diameter of 50mm and an inner diameter of 40mm and is a total of 31mm short.

Example of a "long tapered reduction 50-40mm x 25mm":
The reduction has an outer diameter of 50mm and an inner diameter of 40mm on the "left" side and an inner diameter of 25mm on the "right" side.


PVC Fittings Advantages:


• lightweight
• easy to process, as the parts can be glued together (swelling welding)
• abrasion-resistant and smooth material
• resistant to a variety of chemicals
• extremely durable
• no corrosion
• perfect sealing under heavy conditions


Technical Data:


• Rigid PVC / PVC - U / Polyvinyl chloride
• PN 10 / 10bar at 20°
• PN 16 / 16bar at 20°
• Manufactured according to ISO 9001 certification


1 Meter PVC 16bar with both ends in smooth finish


The high-quality pipes, in conjunction with our PVC glue fittings and PVC glue, form a strong connection that is also used in the industrial sector.
Especially due to the high-pressure level of PN 16, our pressure pipes stand out in quality from other PVC pipes.
Another positive feature is the excellent resistance to oils, fats, alcohols, petrol, acids, common wastewater as well as alkalis.

The use in any known soil type also leads to no detrimental impact. PVC-U pipe can be easily connected and glued with any PVC-U fitting from reputable manufacturers.


Technical Data:


• Material: PVC-U
• Pressure level: PN16 (PN10 and 10bar at 63mm)
• both ends: smooth
• Chemical resistance: salt, chlorine, alkaline, and acidic liquids (not at 63mm)
• DIN 8061/8062
• ISO 1452-2
• Length: each 1m
• Color: gray


PVC pipeline system advantages:


• lightweight
• easy to process, as the parts can be glued together (swelling welding)
• abrasion-resistant and smooth material
• extremely durable
• no corrosion
• perfect sealing under heavy conditions


Material and Processing:


The high-quality PVC fittings are made of PVC-U; this rigid PVC material is particularly durable and has good chemical resistance.
Since the fittings are all provided with a film of oil after production, it is important to clean the fittings with a cleaner before swelling welding and to remove the oil film.
Cleaning the fittings is the basis for gluing them together because if the fittings are not properly cleaned, the glue cannot fully adhere to the surface.
Initially, you should use more glue, as too little glue is only noticed by leakage after completion.


Construction with PVC fittings:


The advantages lie in the installation of PVC fittings, as the elements are glued together, significantly reducing installation time.
The bonding provides a durable and robust connection that is very durable.
The fittings are quickly installed and easy to handle; choosing the right adhesive is crucial for this. Cepex glue and cleaner are ideal for this purpose as they are durable and easy to process.


PVC glue fittings - use and installation.
With these fittings, pipeline systems and pipes can work with low water temperatures and low water pressures. Therefore, the fittings are ideal for filtration systems in pond construction and aquaristics.


Further applications for PVC fittings:


• Swimming pools
• Whirlpools
• Pond construction
• Terrariums
• Aquariums
• Koi ponds
• Tanks
• Plant construction
