Feistiú Píopa PP PE Cúpláil Laghdaithe 25 x 20
Info about the Product:
- Ábhar PP marthanach – frithsheasmhach in úsáid
- Toisí: 25 x 20 mm – laghdaithe le haghaidh nasc beacht
- Rátáil brú PN 16 (240 psi) – feidhmíocht láidir
- Fad: 58 mm – ilúsáideach le haghaidh suiteálacha
- Feistiú píopa PE – oiriúnach d’uisce óil
| SKU | BONI-01558 |
| Brand: | Cepex |
Dennis Heße
Ursula Odenkirc
Regina Kussmaul
Steffen Schuh
Níl aon cheist ann fós
Cuir ceist chun níos mó a fhoghlaim faoin táirge
4.8
Léirmheasanna (4)
Dennis Heße

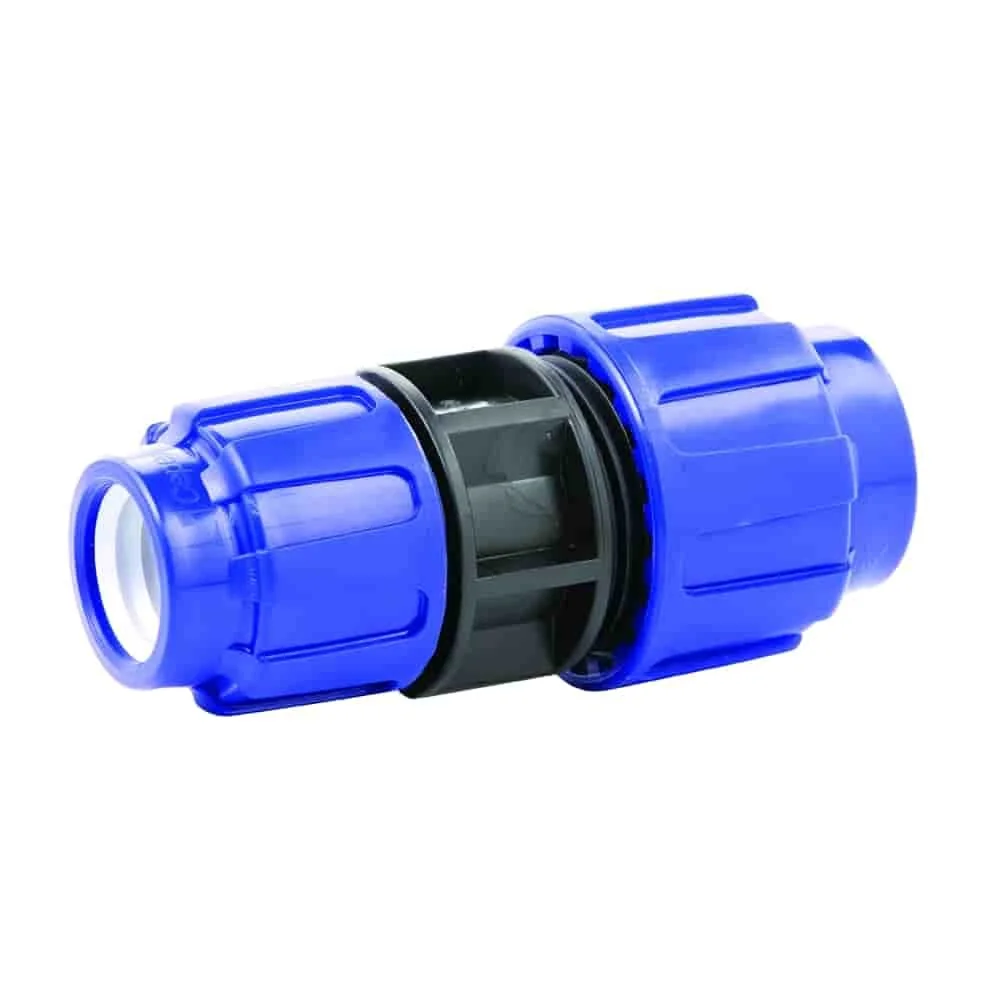

PP PE Pipe Fitting Coupling Reduced 25 x 20
Are you looking for compression fittings and couplings for your pressure pipe systems?
We offer you the right PE pipe fitting for private or industrial use.
Suitable for use in the drinking water sector.

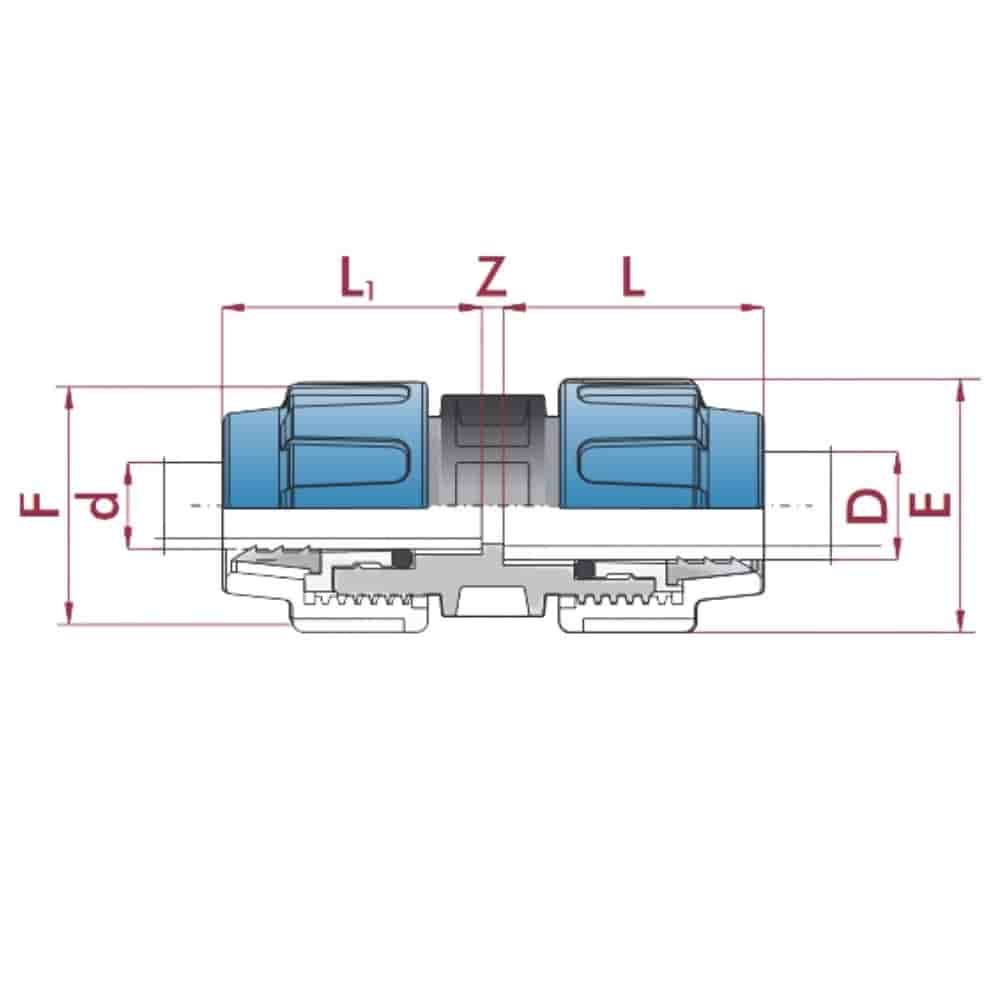

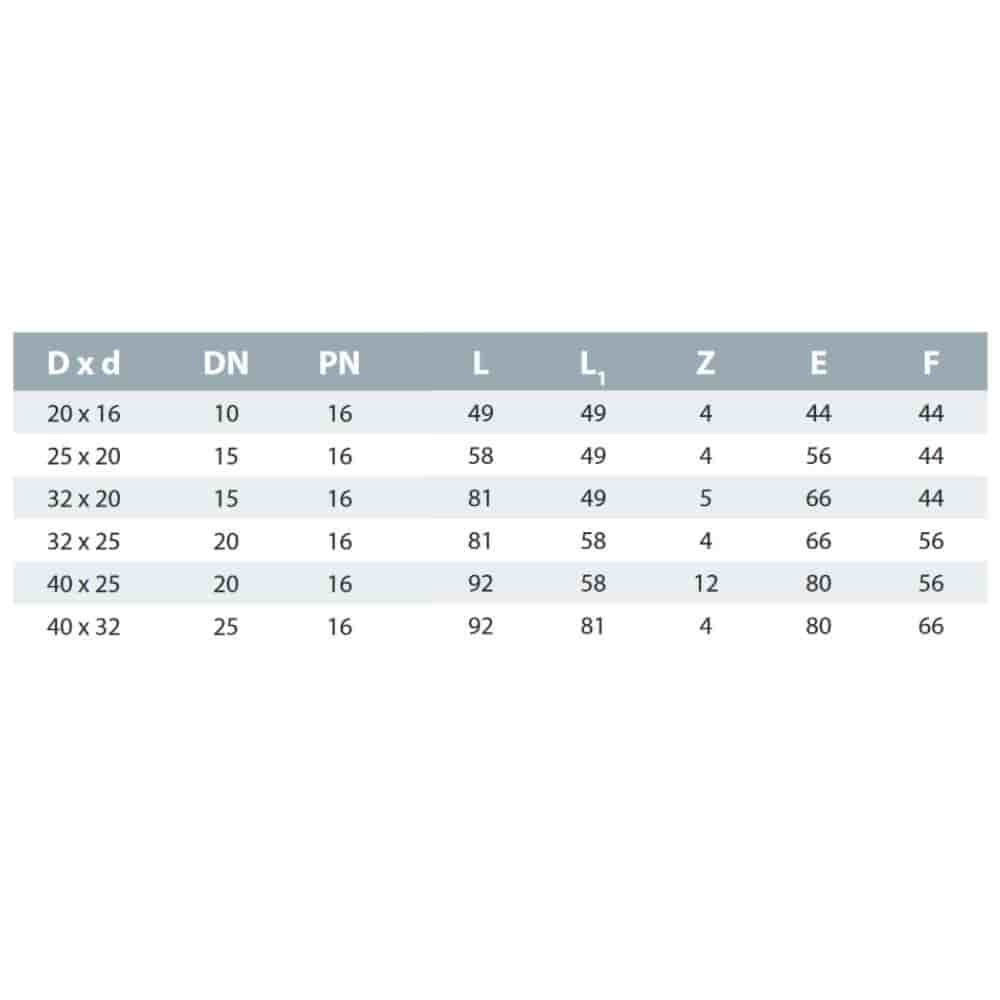

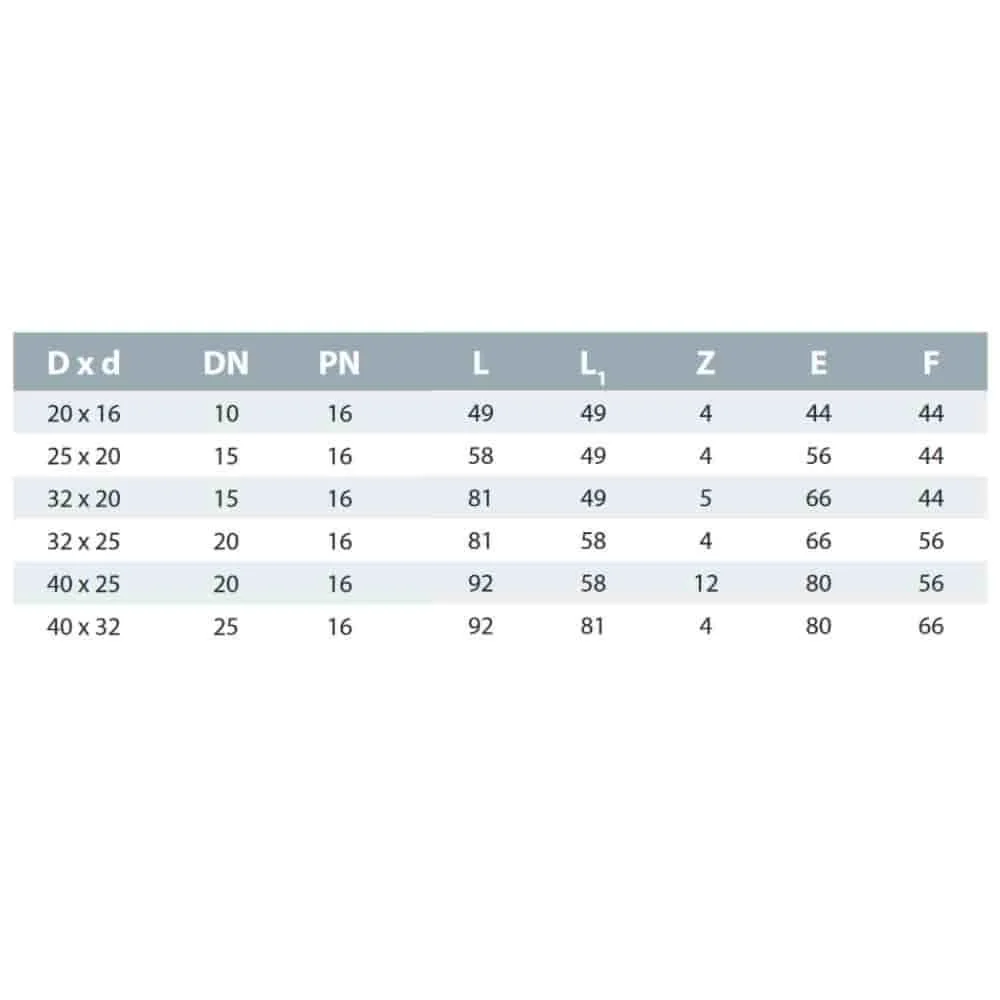

Technical Data (see image)
D x d: 25 x 20
DN: 15
PN: 16 (240 psi)
L: 58mm
L1: 49mm
Z: 4mm
E: 56mm
F: 44mm
Our All-Purpose Solution
Our PE pipe fitting is an all-purpose solution. It is made of polypropylene and is therefore very impact and crack resistant.
At the same time, it is very durable and shows little or no signs of wear or damage even after prolonged use.
It provides ideal insulation and is resistant to acids, alkalis, salts and other organic solutions.
Our PE pipe fitting (also called fitting) is particularly lightweight and can be installed in no time.
You benefit from the high quality of the product we offer, as our PE pipe fitting (compression connector) is tested and certified by internationally recognized testing institutes.
You can order the PE fittings from us in several variants and use them in a wide variety of applications. The most important points at a glance:
- PE pipe fitting in various variants
- blue/black
- suitable for use in the drinking water sector
- very easy installation
- secure connections, high sealing integrity
- highly resilient, acid-resistant and very impact-resistant
- Temperature range from 0°C to 80°C (briefly up to 110°C)
- Maximum permissible pressure at 20°C = PN16 (240psi)
We offer various models
- Ball valve
- End cap
- Compression sleeve
- Coupling with external thread
- Coupling with internal thread
- Coupling with socket
- Coupling with reducer
- Assembly wrench
- T-piece with 3 fittings
- T-piece with external thread
- T-piece with internal thread
- T-piece with extension
- T-piece with reducer
- Adjustable wall bracket with internal thread
- Elbow with 2 fittings
- Elbow with external thread
- Elbow with internal thread
Our fitting complies with standards EN 712/713/715 and ISO 3501/3458/3459.
It is optimally suitable for connection to PE pipes in accordance with standards ISO 11922; DIN 8072/8074 and UNE 53131.
