PP PE Pipe Fitting T-Piece 32 x 1" AG x 32
Info about the Product:
- Ábhar soladach PP – frithsheasmhach agus buan
- Toisí: 32 x 1" AG x 32 – dearadh beacht T-píosa
- Rátáil brú PN 10 (150 psi) – feidhm iontaofa
- Fad: 81 mm – solúbtha do go leor córas
- Feistiú píopa PE – sábháilte do línte uisce óil
| SKU | BONI-01542 |
| Brand: | Cepex |
Alexander Weime
Prof. Dr. Heinr
Tom Verstraten
Heinz-Dieter Co
Níl aon cheist ann fós
Cuir ceist chun níos mó a fhoghlaim faoin táirge
4.8
Léirmheasanna (4)
Alexander Weime

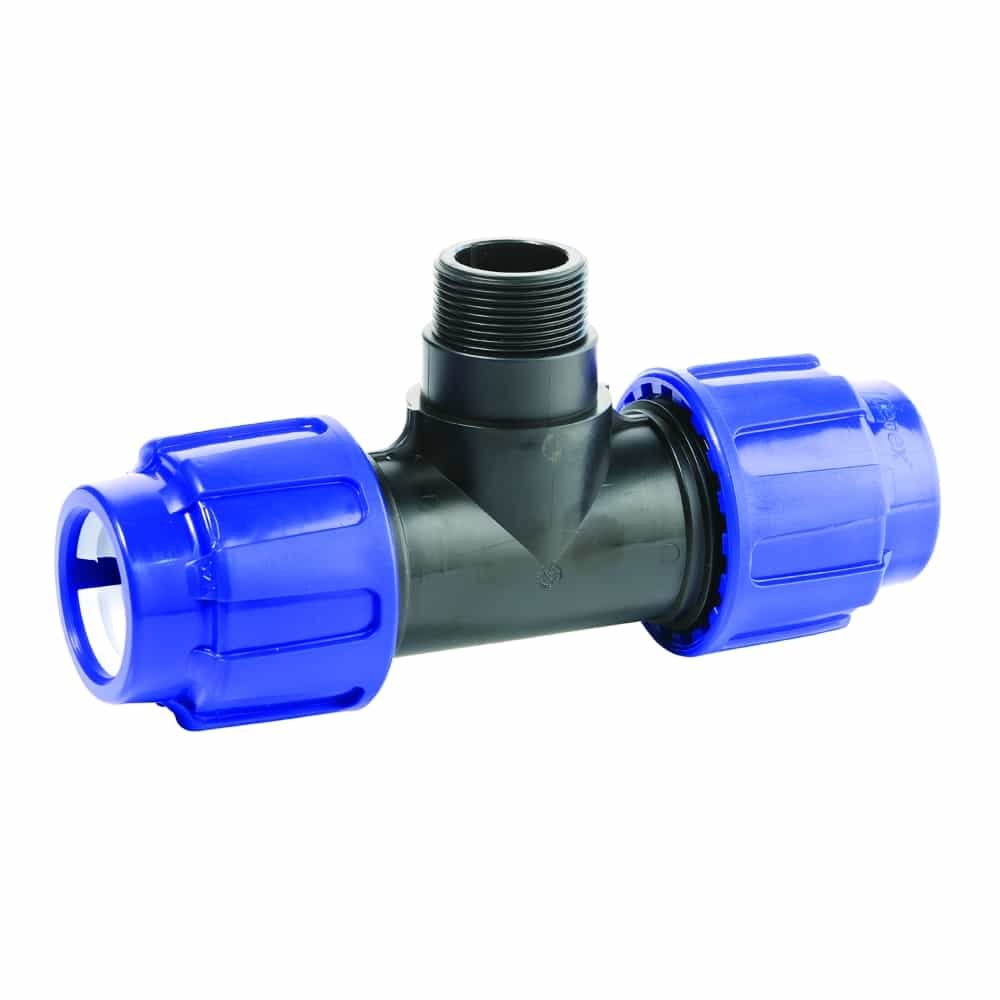

PP PE Pipe Fitting T-Piece 32 x 1" AG x 32
Looking for compression fittings and connectors for your pressure pipe systems?
We offer you the right PE pipe fitting for private or industrial use.
Suitable for use in the drinking water sector.

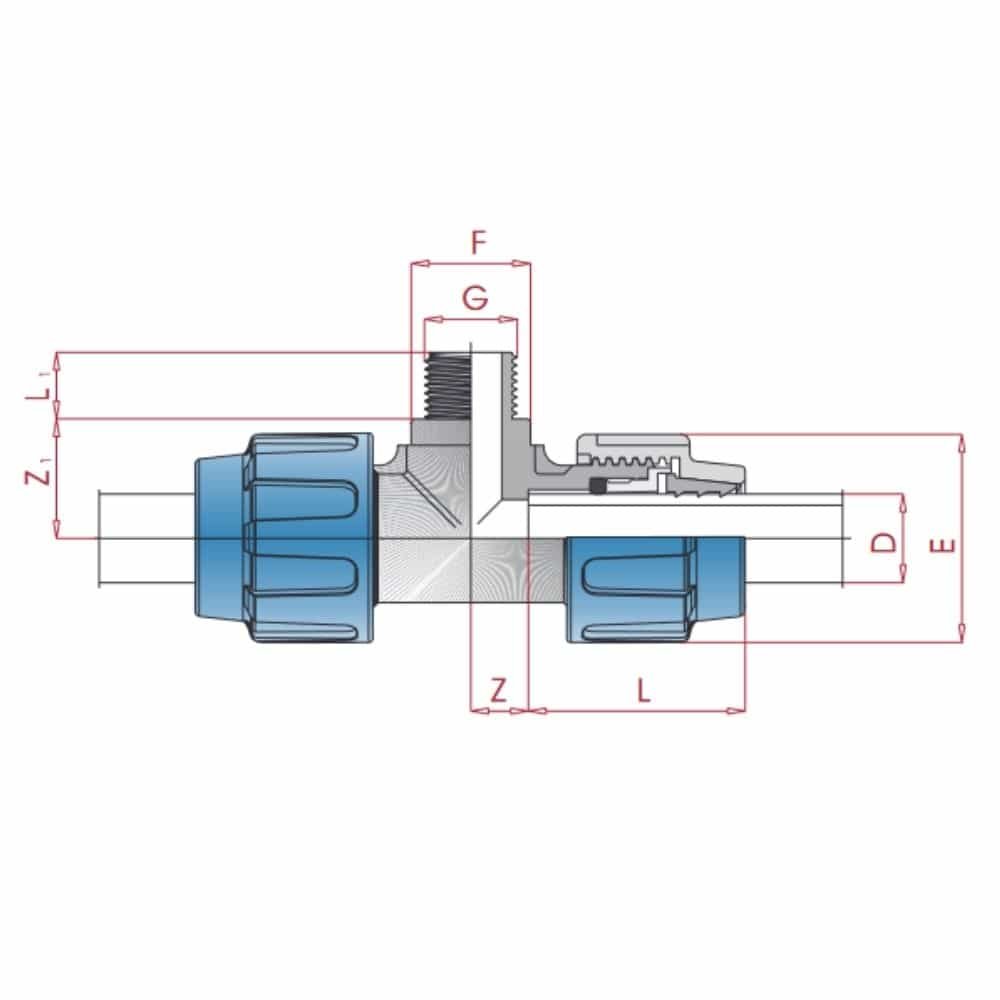

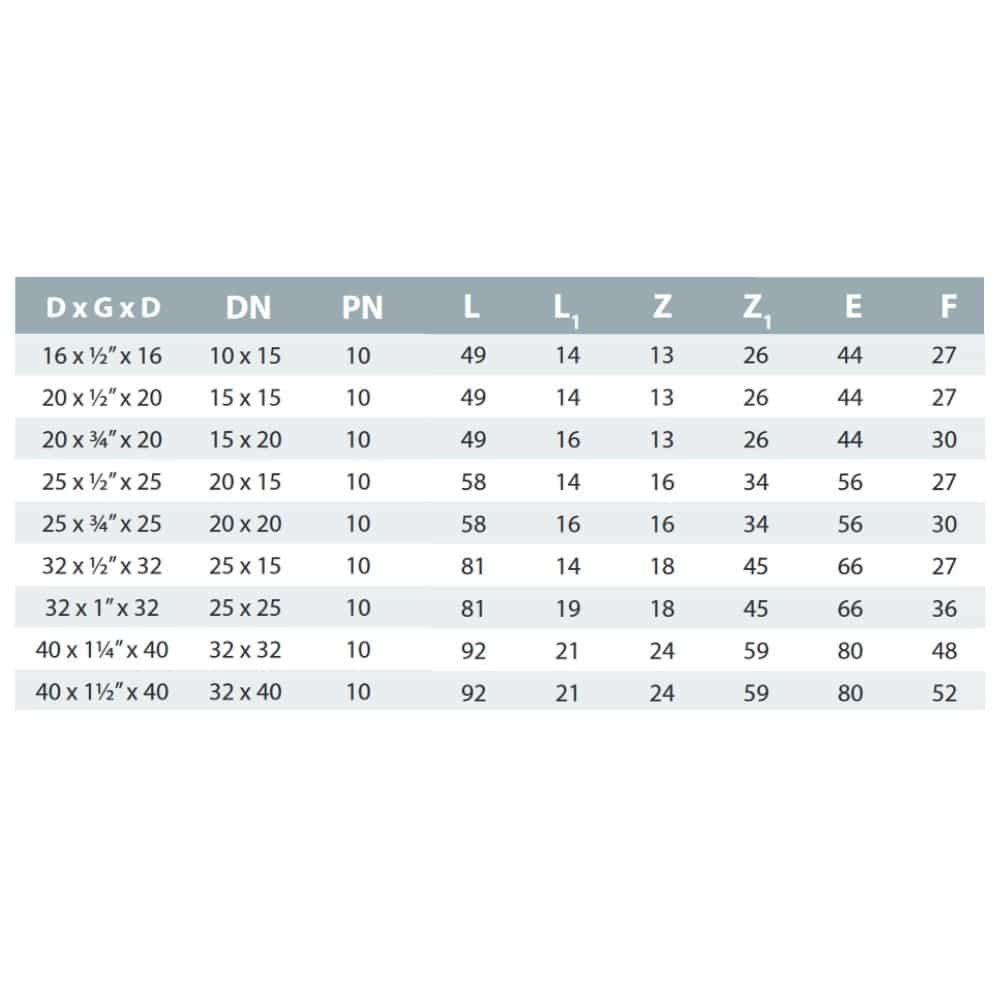

Technical Data (see image)
D x G x D: 32 x 1" x 32
DN: 25 x 25
PN: 10 (150 psi)
L: 81mm
L1: 19mm
Z: 18mm
Z1: 45mm
E: 66mm
F: 36mm
Our All-Purpose Solution
Our PE pipe fitting is an all-purpose solution. It is made of polypropylene and is therefore very impact and crack resistant.
At the same time, it is very durable and shows little to no signs of wear or deterioration even after prolonged use.
It provides ideal insulation and is resistant to acids, alkalis, salts and other organic solutions.
Our PE pipe fitting (also called a fitting) is particularly lightweight and can be installed in no time.
You benefit from the high quality of the product we offer, as our PE pipe fitting (compression connector) is tested and certified by internationally recognized testing institutes.
You can order the PE fittings from us in several variants and use them in a wide variety of applications. The most important points at a glance:
- PE pipe fitting in various variants
- blue/black
- suitable for use in the drinking water sector

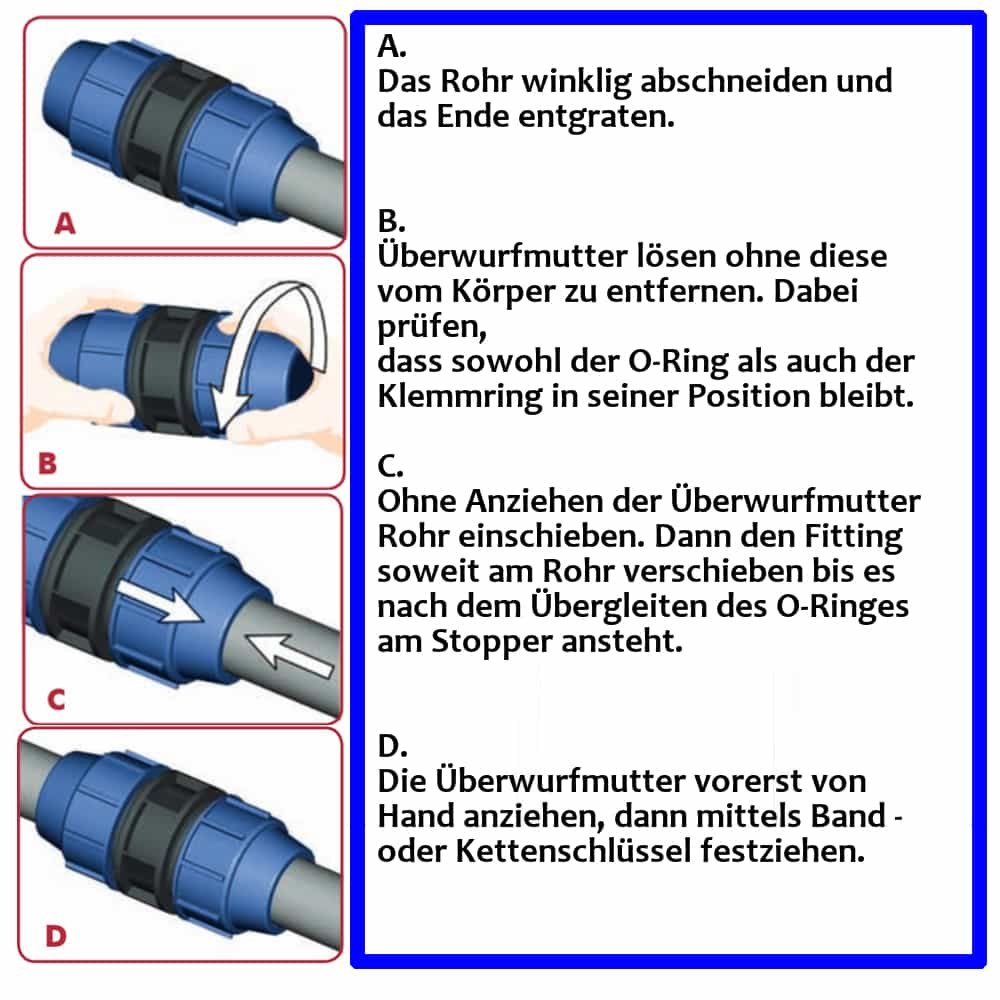

- very easy installation
- secure connections, high sealing integrity
- highly durable, acid resistant and very impact resistant
- temperature range from 0°C to 80°C (briefly up to 110°C)
- Maximum permissible pressure at 20°C = PN16 (240psi)
We offer various models
- Ball valve
- End cap
- Compression sleeve
- Coupling with male thread
- Coupling with female thread
- Coupling with socket
- Coupling with reducer
- Assembly wrench
- T-piece with 3 connectors
- T-piece with male thread
- T-piece with female thread
- T-piece with extension
- T-piece with reducer
- Wall bracket adjustable with female thread
- Elbow with 2 connectors
- Elbow with male thread
- Elbow with female thread
Our fitting complies with standards EN 712/713/715 and ISO 3501/3458/3459.
It is optimally suitable for connection to PE pipes in accordance with standards ISO 11922; DIN 8072/8074 and UNE 53131.
