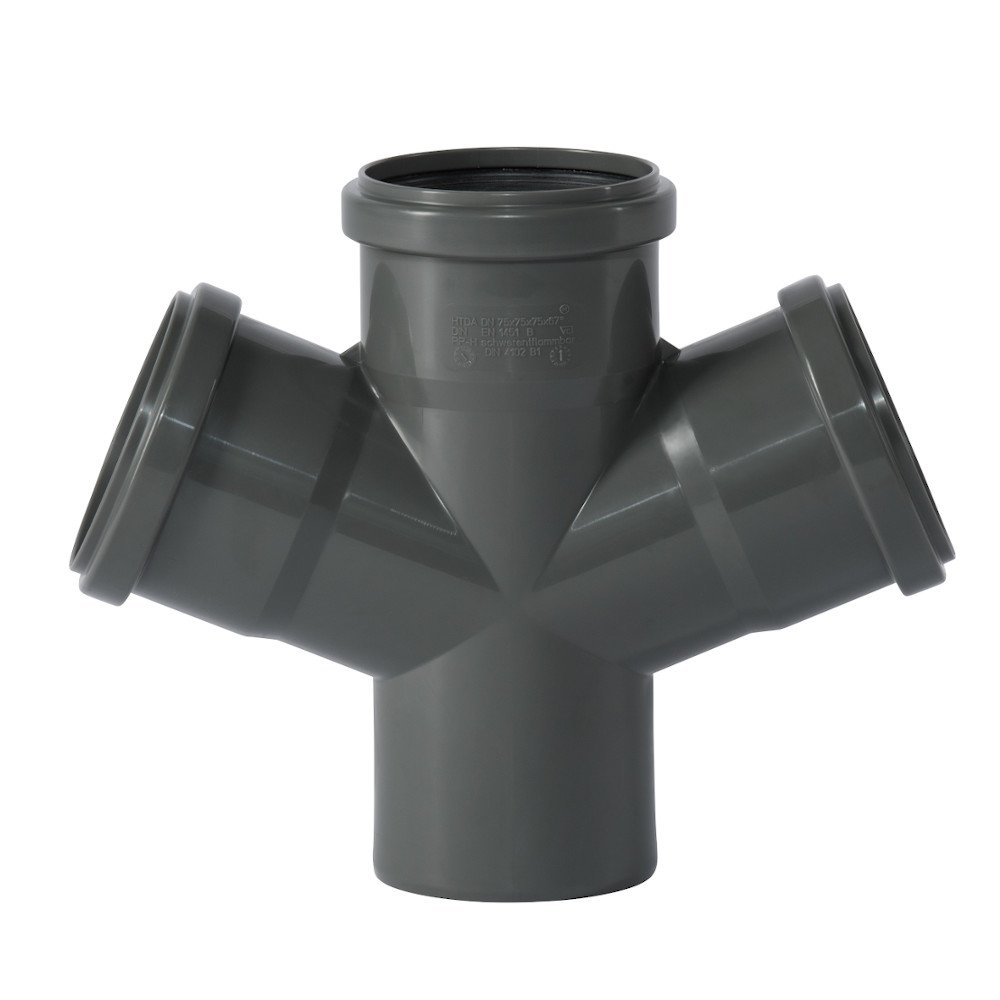

HT Double Branch DN/OD 75/75/75 67 Degrees, Sewer Pipe
| SKU | BONI-173900 |
| Brand: | KLASEBO |
HT Double Branch DN/OD 75/75/75 67 Degrees for Your House Drainage
Ensure reliable and durable drainage with our high-quality HT double branch. This branch is ideal for installing sewage, rainwater, and ventilation pipes in your building. Learn more about the outstanding features and benefits of this product, which offers you fast processing, secure sealing, and optimal noise behaviour.
Product Features and Benefits
- Fast Processing: You benefit from quick installation thanks to the simple plug-in connections.
- Secure Sealing: The patented 3-fold sealing lip and the replaceable NBR seal ensure reliable sealing and prevent water damage.
- Optimal Noise Behaviour: The HT double branch offers very good sound insulation, so you benefit from quiet house drainage.
- Long Durability: Manufacturing according to DIN EN 1451-1 and high chemical resistance guarantee an extremely long service life.
- Easy Installation: The pipe system can be easily installed and laid using plug-in connections with sleeves.
- Approved for Various Applications: The HT double branch is approved with common fire protection sleeves and pull-out fuses and is also suitable for central vacuum cleaner systems.
Advantages of the HT Double Branch
- High Temperature Resistance: Suitable for application areas from -20° to 90°.
- Chemical Resistance: Stable against biogenic sulfuric acid corrosion in the pH range from 2 to 12.
- Abrasion Resistance: Durability and operational safety due to high abrasion resistance of polypropylene.
- Impact Resistance: Excellent impact resistance and toughness for robust applications.
- Smooth Surface: Optimal hydraulics and avoidance of incrustations due to smooth surfaces.
- Self-Cleaning: Large maintenance intervals due to self-cleaning effect.
- Easy Adjustment: HT pipes can be cut to any length with a metal or fine saw.
Application: Step by Step
- Step 1: Preparation – Make sure that all necessary tools (saw, cutting jig, chamfering tool) and materials (HT pipes, HT branches, seals) are ready.
- Step 2: Cutting – Cut the HT pipes to the required length with a metal saw. Use a cutting jig for a straight cut.
- Step 3: Chamfering – Chamfer the saw edges to ensure a proper connection and avoid damage to the seals.
- Step 4: Assembling – Plug the HT pipes and the HT double branch together with the sleeves. Make sure that the pipes are fully inserted into the sleeves.
- Step 5: Length Compensation – After joining, pull the pipe out about one centimeter to create an effective length compensation.
- Step 6: Installation – Lay the pipes so that no wastewater is dammed up and solid parts cannot accumulate. Observe a minimum gradient of 2 cm per meter.
Technical Data
| Material | Diameter (DN/OD) | Angle | Temperature range |
| Polypropylene (PP) | 75/75/75 mm | 67 Degrees | -20° to 90°C |
Frequently Asked Questions (FAQ)
Is the HT double branch suitable for all types of wastewater?
Yes, the HT double branch is suitable for sewage, rainwater and ventilation pipes.
How resistant is the HT double branch to chemicals?
The HT double branch is very resistant to chemicals in the pH range from 2 to 12 and stable against biogenic sulfuric acid corrosion.
Can I also use the HT double branch outdoors?
The HT double branch is mainly designed for indoor use. For outdoor use, we recommend special UV-resistant pipes.
How long does the seal in the HT double branch last?
The NBR seal is extremely durable and can be replaced if necessary.
Do I need special tools for installation?
For the installation you only need a saw, a cutting jig and a chamfering tool. Special tools are not required.
